Barbed Wire
Barbed Wire Machine
- Supply Ability:20 sets / set per Month as request.
- Payment Terms:L/C,D/A,D/P,T/T,Western Union.
- Place of Origin:Anping Hebei China (Mainland).
- Products Specifications:single wire twist or double wire twist.
- Material:Galvanized wire,PVC Coated Wire,Stainless steel Wire(430,304,304L,316).
- Surface Treatment:Hot dipped galvanized and stainless steel,PVC Coated.
- Quality Control:ISO9001.
Our engineers can design machines to produce galvanized barbed wire, plastic coated barbed wire of different patterns.

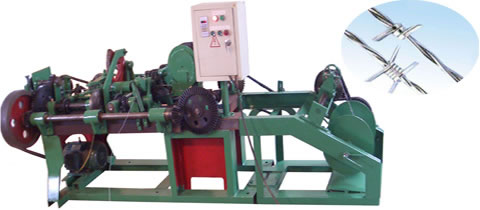

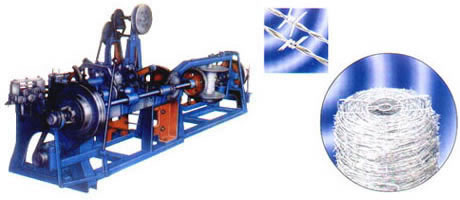

Our barbed Wire Machine is designed to produce barbed wire single or double twisted. Stranded barbed steel wire, thermo-plated with zinc. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.
This machine is easy for operation, with low noise, less cost of energy. A kind of digital controlled machine to produce straight and reverse twisted barbed wire.
|
Gauge of Strand and Barb in B.W.G.
|
Approximate Length per Kilo in Meter
|
|
Barbs spacing 3"
|
Barbs spacing 4"
|
Barbs spacing 5"
|
Barbs spacing 6"
|
|
12x12
|
6.0617
|
6.7590
|
7.2700
|
7.6376
|
|
12x14
|
7.3335
|
7.9051
|
8.3015
|
8.5741
|
|
12-1/2x12-1/2
|
6.9223
|
7.7190
|
8.3022
|
8.7221
|
|
12-1/2x14
|
8.1096
|
8.814
|
9.2242
|
9.5620
|
|
13x13
|
7.9808
|
8.899
|
9.5721
|
10.0553
|
|
13x14
|
8.8448
|
9.6899
|
10.2923
|
10.7146
|
|
13-1/2x14
|
9.6079
|
10.6134
|
11.4705
|
11.8553
|
|
14x14
|
10.4569
|
11.6590
|
12.5423
|
13.1752
|
|
14-1/2x14-1/2
|
11.9875
|
13.3671
|
14.3781
|
15.1034
|
|
15x15
|
13.8927
|
15.4942
|
16.6666
|
17.5070
|
|
15-1/2x15-1/2
|
15.3491
|
17.1144
|
18.4060
|
19.3386
|

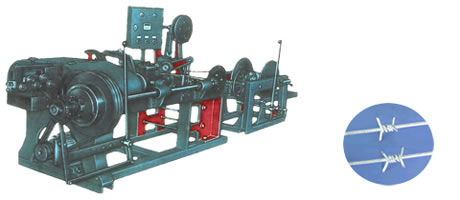

Instruction of Single Strand Barbed Wire Machine：
Use and capabilty:
GB/T343-requires the common hot dipped galvanized low carbon stell wire.The products can be used in the national defence, railroad,highway,stockbreeding and agriculture and so on.
CS-B Type Single Strand Barbd Wire Machine is make up by spool wire and twist wire two parts.The machine can produce all kinds of barbed wires.At present,just this kind of machine can produce the barbed wire mesh.
Technical ParameterParamete of CS-B model barbed wire mesh machine:
|
No
|
Items
|
Unit
|
Parameter
|
|
1
|
electromotor
|
Modle
|
Y10012-4
|
|
2
|
electromotor
|
KW
|
3
|
|
3
|
Speed of transmission shaft
|
time/min
|
402
|
|
4
|
Speed of spooling barbed wire
|
time/min
|
470
|
|
5
|
Speed of pulling rope
|
mime/min
|
134
|
|
6
|
Speed of round pallet
|
time/min
|
30-255
|
|
7
|
Size of the main machine
|
mm
|
1900*1300*980
|
|
8
|
Size of the pull wire machine
|
mm
|
1800*500*500
|
|
Note : Special need should discuss by buyer.
|
The specification of CS-B model Barbed Wire mesh Machine:
|
No
|
Items
|
Unit
|
Parameter
|
|
1
|
Distance between barbs
|
cm
|
10-15
|
|
2
|
Twist
|
Number
|
4
|
|
3
|
Diameter of chief wire
|
Mm
|
1.6-2.8
|
|
4
|
Diameter of barb wire
|
mm
|
1.6-2.6
|

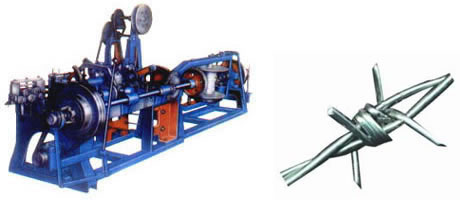

Instruction of Double Twisted Barbed Wire Machine：
Use and capabilty:
GB/T343-requires the common hot dipped galvanized low carbon stell wire . The products can be used in the national defence , railroad , highway , stockbreeding and agriculture and so on.
CS-A barbea wire machine is make up by spool wire and twist wire two parts . The machine can produce all kinds of barbed wires . At present , just this kind of machine can produce the barbed wire mesh.
Technical ParameterParamete of CS-A model barbed wire mesh machine:
|
No
|
Items
|
Unit
|
Parameter
|
|
1
|
electromotor
|
Modle
|
Y10012-4
|
|
2
|
electromotor
|
KW
|
3
|
|
3
|
Speed of transmission shaft
|
time/min
|
402
|
|
4
|
Speed of spooling barbed wire
|
time/min
|
470
|
|
5
|
Speed of pulling rope
|
mime/min
|
134
|
|
6
|
Speed of round pallet
|
time/min
|
30-255
|
|
7
|
Size of the main machine
|
mm
|
1900*1300*980
|
|
8
|
Size of the pull wire machine
|
mm
|
1800*500*500
|
|
Note : Special need should discuss by buyer.
|
The specification of CS-A model Barbed Wire mesh Machine:
|
No
|
Items
|
Unit
|
Parameter
|
|
1
|
Distance between barbs
|
cm
|
10-15
|
|
2
|
Twist
|
Number
|
4
|
|
3
|
Diameter of chief wire
|
Mm
|
1.6-2.8
|
|
4
|
Diameter of barb wire
|
mm
|
1.6-2.6
|
Straight and Reverse Twisted Barbed Wire Machine：
Use and capabilty:
This machine is used to produce double strand straight and reverse twisted barbed wire. The material used is low carbon steel wire meeting the standard of GB/T343-94. Finished products made by this machine are widely used as fencing and protecting materials in national defense, railway, expressway, agriculture and animal feeding.
CS-C Model Straight and Reverse Twisted Barbed Wire Machine is composed by two parts including straight and reverse twisting, barb winding and taking in. The machine is fitted with four disks for wire rewinding.
This machine is easy for operation, with low noise, less cost of energy. A kind of digital controlled machine to produce straight and reverse twisted barbed wire.
Technical Parameter Technical Parameter of CS-C Model Barbed Wire Machine
|
No.
|
Item
|
Unit
|
Fundamental Parameter
|
|
1
|
Motor
|
Model
|
Y100L2-4
|
|
2
|
Motor
|
KW
|
2.2
|
|
3
|
Main Drive Shaft Speed
|
r/min
|
357
|
|
4
|
Wire Drawing Rate
|
T/min
|
125
|
|
5
|
Rotating Degree of Takingup Speed
|
|
Friction gathering
|
|
6
|
Theoretical Yield
|
Kg/h
|
50
|
|
7
|
Main Engine Section
|
mm
|
1900X1300X980
|
|
8
|
Wire Takingup Section
|
mm
|
1300X800X700
|
Specification of CS-C Model Barbed Wire Machine:
|
No.
|
Item
|
Unit
|
Technical Index
|
|
1
|
Distance between barbs
|
cm
|
8-15
|
|
2
|
Twisting
|
number
|
4
|
|
3
|
Diameter of chief wire
|
mm
|
1.6-2.6
|
|
4
|
Diameter of barb wire
|
mm
|
1.6-2.3
|
