Razor Barbed Wire
Razor Barbed Wire
- Supply Ability:500 Ton/Tons per Month as request.
- Payment Terms:L/C,D/A,D/P,T/T,Western Union.
- Place of Origin:Anping Hebei China (Mainland).
- Products Specifications:BTO-10,12,18,22,30 CBT-60 CBT-65.
- Material:Galvanized Steel Strip,Galvanized wire Stainless Steel Strip,Stainless steel Wire(430,304,304L,316).
- Surface Treatment:Hot dipped galvanized and stainless steel,PVC Coated.
- Quality Control:ISO9001.
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Razor Barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Currently, Razor Barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

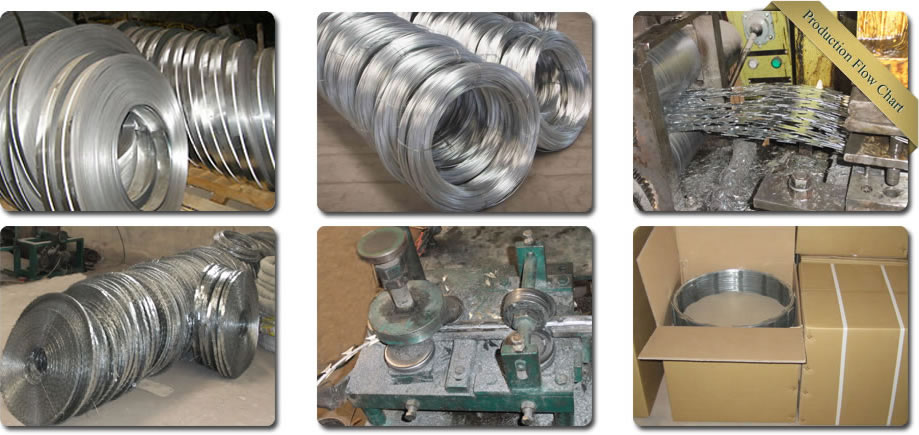

Production Flow Chart Of Razor Barbed Wire:
Razor barbed wire is imported from overseas, new security isolation products. Production process is hot dip galvanized steel stamping material cut into the shape of a sharp knife, then wrapped in steel (stringless) above. Usually double wire clamp assembly into a snake belly button shape, with a certain degree of flexibility, not easy to climb, it can play a very effective deterrent. Now, razor wire has been widely used in airports, military areas, border, prisons, government offices, banks and other venues villa wall protection, can also be used for rapid deployment of military facilities.

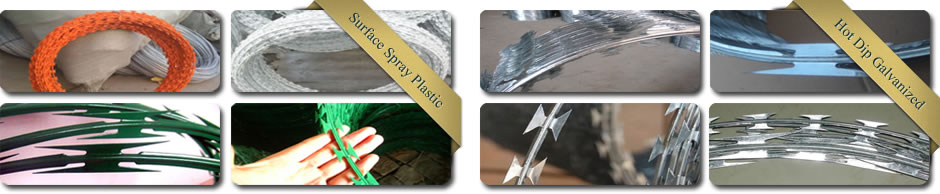

Razor barbed wire surface corrosion treatment:
Razor barbed wire is made by squeezing hot galvanized plate fixed on Hot dip galvanized wire, because itself is hot galvanized plate, usually do not require additional processing. For demanding environments, can be a high amount of zinc galvanized wire can achieve better anti-corrosion effect. Can also be surface spray in late, make the product more attractive and durable.

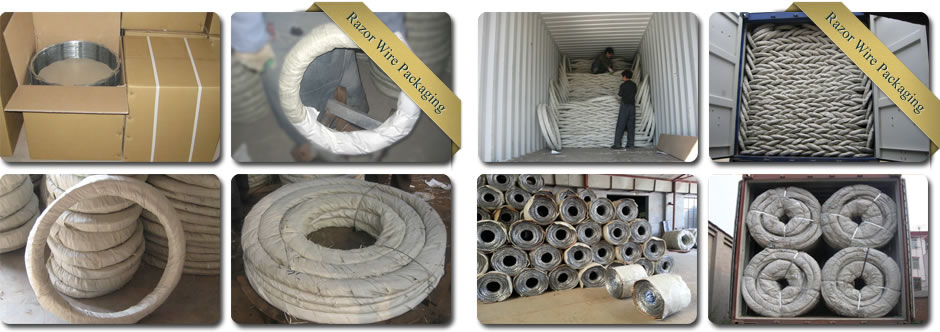

Razor barbed wire packing and crating:
Razor barbed wire is divided into two packages:
First, the entire volume is razor wire stacked, compressed by the pressure of the charter, and then iron bandage dress this way produced 20-foot container, can make good use of space inside, usually reaches 19 to 26 t / 20-foot container.
Second, the volume will be razor wire neatly packaged code on wooden tray for easy loading and unloading trucks.
Razor barbed wire specifications in the form:
|
Razor Blade Specification
|
|
Reference Number
|
Blade Style
|
Thickness
|
Wire Dia
|
Barb
Length
|
Barb
Width
|
Barb
spacing
|
|
BTO-10
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
13±1
|
26±1
|
|
BTO-12
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-18
|
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
BTO-28
|
|
0.5±0.05
|
2.5±0.1
|
28±1
|
15±1
|
34±1
|
|
BTO-30
|
|
0.5±0.05
|
2.5±0.1
|
30±1
|
18±1
|
34±1
|
|
CBT-60
|
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
96±2
|
|
CBT-65
|
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard styles products are shown in the tables above, special specifications are available on request.
|
Barbed Tape Wire Specification
|
|
Loop Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
|
450mm
|
56
|
8-9m(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
10-11M(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
