Razor Barbed Wire
PVC Coated Razor Barbed Wire
- Supply Ability:500 Ton/Tons per Month as request.
- Payment Terms:L/C,D/A,D/P,T/T,Western Union.
- Place of Origin:Anping Hebei China (Mainland).
- Products Specifications:BTO-10,12,18,22,30 CBT-60 CBT-65.
- Material:Galvanized Steel Strip,Galvanized wire Stainless Steel Strip,Stainless steel Wire(430,304,304L,316).
- Surface Treatment:Hot dipped galvanized and stainless steel,PVC Coated.
- Quality Control:ISO9001.

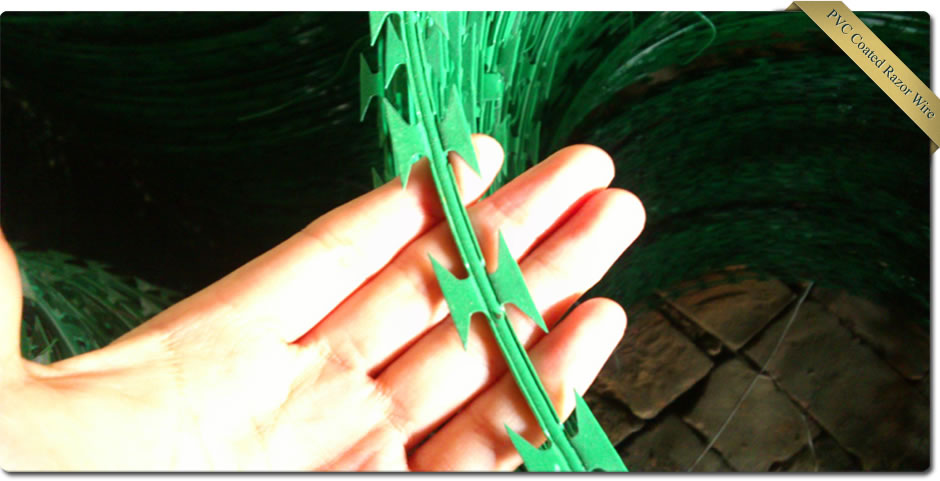

PVC coated razor barbed wire material applied for razor type barbed wire and barbed tape wire: Galvanized razor wire or stainless steel razor coils.PVC coated razor barbed wire can be installed in the form of barbed tape wire or concertina coil to walls or fencings.
PVC coated razor barbed wire Material:
PVC coated Barbed Wire can be with different treatment, like PE or PVC coated. Core Wire can be galvanized Iron Wire or Black Wire.
PVC Coated Razor Barbed Wire Application:
PVC coated Wire offered by us is suitable for industry, agriculture, animal husbandry or fencing.
Packing: Carton/PP woven cloth/Pallet or loose packing.
Razor barbed tape is a kind of modern security fencing material fabricated with razor-sharp steel blade and high-tensile wire.
Razor wire presentation form:
concertina coils type, single coil razor wire, straight type razor wire, razor wire mesh fence.
1. Crossed razor wire
two pieces of stainless razor wire or zinc-coated razor wire wer bounded together by clips to make it more strength.
The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
2. Single barbed wire
single coil barbed type wire is installed without clips, it runs in natural loops on walls. Costless and can be easily installed.
3. Straight razor barbed wire
There are many ways for straight type razor wire installing. The straight type razor wire can be installed quickly. It can not only save expenditure but also reach the result of frightening and stopping.
4.Razor wire mesh fence

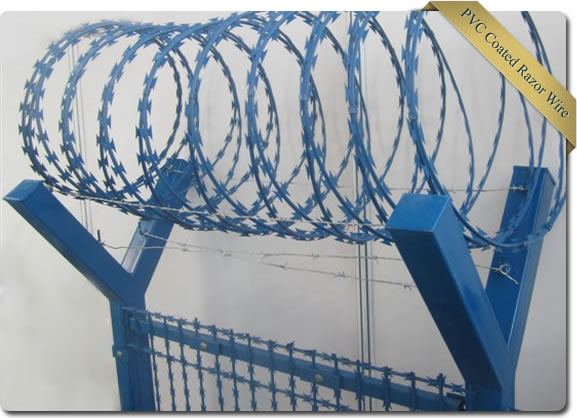

Welded razor mesh fence is a new form of razor barbed wire mesh for security with practicality blade and the feature looks very beautiful. It can be used for guard net of fence, doors and windows and also can be used in military. The specification can be designed as the customers' need.
Razor Barbed Wire usage:maily serves in protecting of grass boundary, railway, highway and also widely used in military, jail and other national security organizations, and industry, agriculture, animal husbandry, dwelling house, also used as fence for cottage as society fence and other private buildings.
PVC Coated Razor Barbed Wire Usage:
1.As its corrosion resistance, high protection, is widely used by many countries in military fields, prisons, goverments buildings and other national facilities.
2.They are usually used together with the fence products, such as the welded fence,chain link fence, etc..
Concertina wire with PVC coating has longer life expectancy.

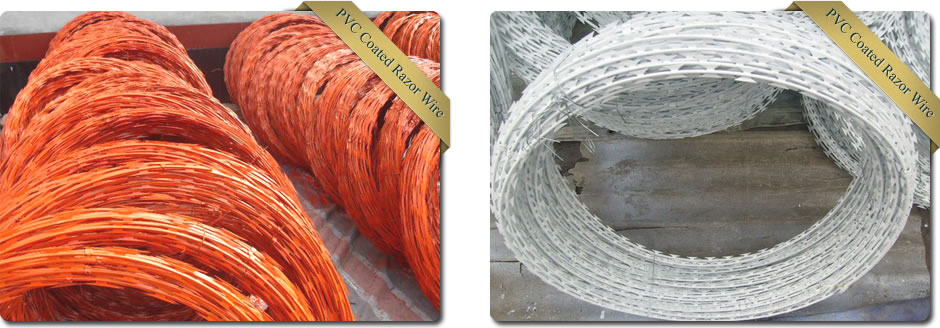

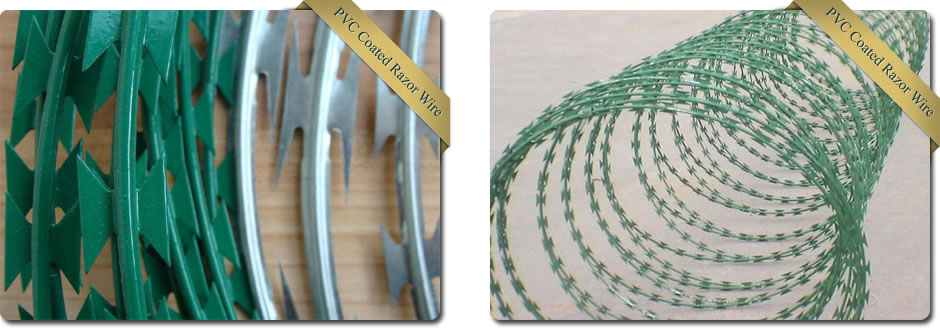

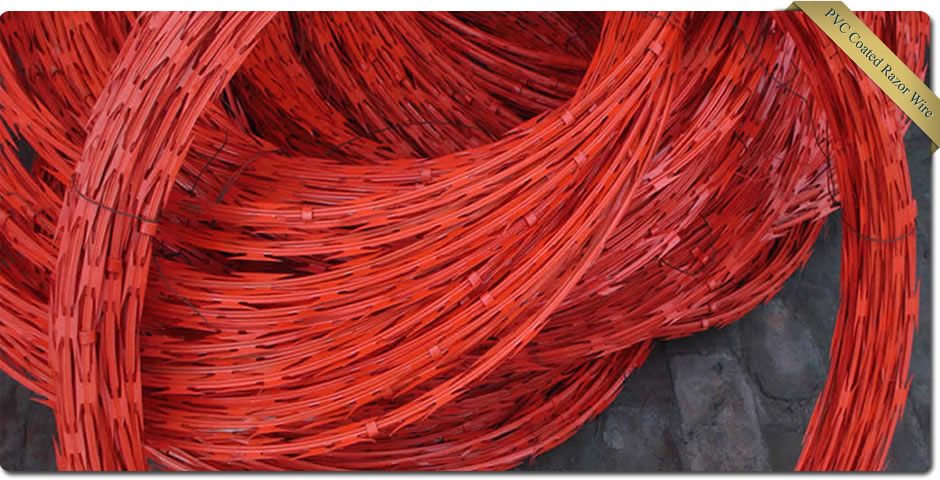

PVC coated concertina wire refers to adding an extra PVC coating to galvanized concertina wire. It is designed to enhance corrosive resistance and appearance. Available in green, red, yellow or special colors.
PVC Coated Razor Barbed Wire specifications in the form:
|
Razor Blade Specification
|
|
Reference Number
|
Blade Style
|
Thickness
|
Wire Dia
|
Barb
Length
|
Barb
Width
|
Barb
spacing
|
|
BTO-10
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
13±1
|
26±1
|
|
BTO-12
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-18
|
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
BTO-28
|
|
0.5±0.05
|
2.5±0.1
|
28±1
|
15±1
|
34±1
|
|
BTO-30
|
|
0.5±0.05
|
2.5±0.1
|
30±1
|
18±1
|
34±1
|
|
CBT-60
|
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
96±2
|
|
CBT-65
|
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard styles products are shown in the tables above, special specifications are available on request.
|
Barbed Tape Wire Specification
|
|
Loop Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
|
450mm
|
56
|
8-9m(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
10-11M(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
