Razor Barbed Wire
Galvanized Razor Barbed Wire
- Supply Ability:500 Ton/Tons per Month as request.
- Payment Terms:L/C,D/A,D/P,T/T,Western Union.
- Place of Origin:Anping Hebei China (Mainland).
- Products Specifications:BTO-10,12,18,22,30 CBT-60 CBT-65.
- Material:Galvanized Steel Strip,Galvanized wire Stainless Steel Strip,Stainless steel Wire(430,304,304L,316).
- Surface Treatment:Hot dipped galvanized and stainless steel,PVC Coated.
- Quality Control:ISO9001.

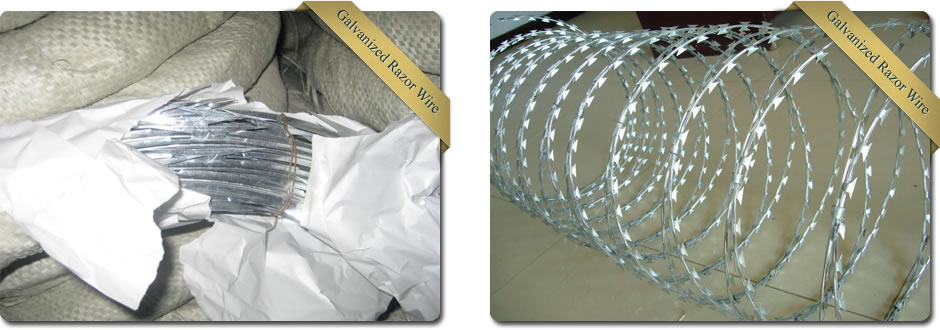

Razor wire in hot dipped galvanized sheet is economic cost compared with stainless steel razor wire. It has bright and beautiful blade of various types, offers good corrosion resistance. Galvanized razor wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils.
Advantages of Galvanized Razor Barbed Wire:
•Zinc coating protects inside steel wire.
•Sharp blades scares enemies away;
•Silvery appearance warning people not climbing.
•Related cheap price.
Four reasons of purchasing Galvanized Razor Barbed Wire:
Galvanized Razor Barbed Wire has thick zinc coating to resist acid rains and all weathers. Compared with naked steel razor wire, galvanized wire is very durable and will not rust.

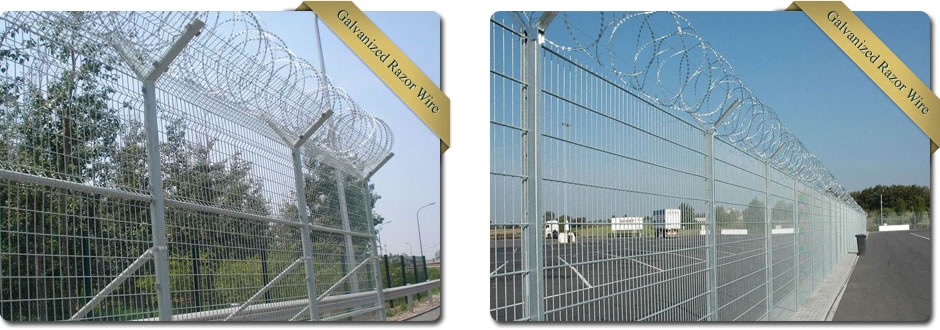

Galvanized Razor Barbed Wire often combines with chain fences, field fence, welded wire fence, walls and gates to provide high security. Widely used in residential, commercial, military, garden, boundary and prisons.
Galvanized Razor Barbed Wire Specifications:
BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65.
|
Razor Blade Specification
|
|
Reference Number
|
Blade Style
|
Thickness
|
Wire Dia
|
Barb
Length
|
Barb
Width
|
Barb
spacing
|
|
BTO-10
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
13±1
|
26±1
|
|
BTO-12
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-18
|
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
BTO-28
|
|
0.5±0.05
|
2.5±0.1
|
28±1
|
15±1
|
34±1
|
|
BTO-30
|
|
0.5±0.05
|
2.5±0.1
|
30±1
|
18±1
|
34±1
|
|
CBT-60
|
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
96±2
|
|
CBT-65
|
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard styles products are shown in the tables above, special specifications are available on request.
|
Barbed Tape Wire Specification
|
|
Loop Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
|
450mm
|
56
|
8-9m(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
10-11M(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
