Razor Barbed Wire
Stainless Steel Razor Wire
- Supply Ability:500 Ton/Tons per Month as request.
- Payment Terms:L/C,D/A,D/P,T/T,Western Union.
- Place of Origin:Anping Hebei China (Mainland).
- Products Specifications:BTO-10,12,18,22,30 CBT-60 CBT-65.
- Material:Galvanized Steel Strip,Galvanized wire Stainless Steel Strip,Stainless steel Wire(430,304,304L,316).
- Surface Treatment:Hot dipped galvanized and stainless steel,PVC Coated.
- Quality Control:ISO9001.
Stainless steel razor barbed wire is made with stainless steel sheet and wire AISI 304,304L or 316,316L Stainless steel razor barbed wire offers longer service life compared with other materials, and much better property of corrosion resistance. This kind of razor wire is supplied in straight ribbons,single coil concertina or crossed concertina razor coils.
Stainless steel razor barbed wire is available with a variety of blade styles: BT-10, BT-12, BT-18, BT-22, BT-28, BT-30, BT-60, etc. The barb length, barb spacing and barb width can be produced according to your specific requirements.
Stainless steel razor barbed wire features high tensile strength, excellent corrosive resistance and durability. In addition, stainless steel concertina coil will never tarnish and remain shining appearance even after several years usage.

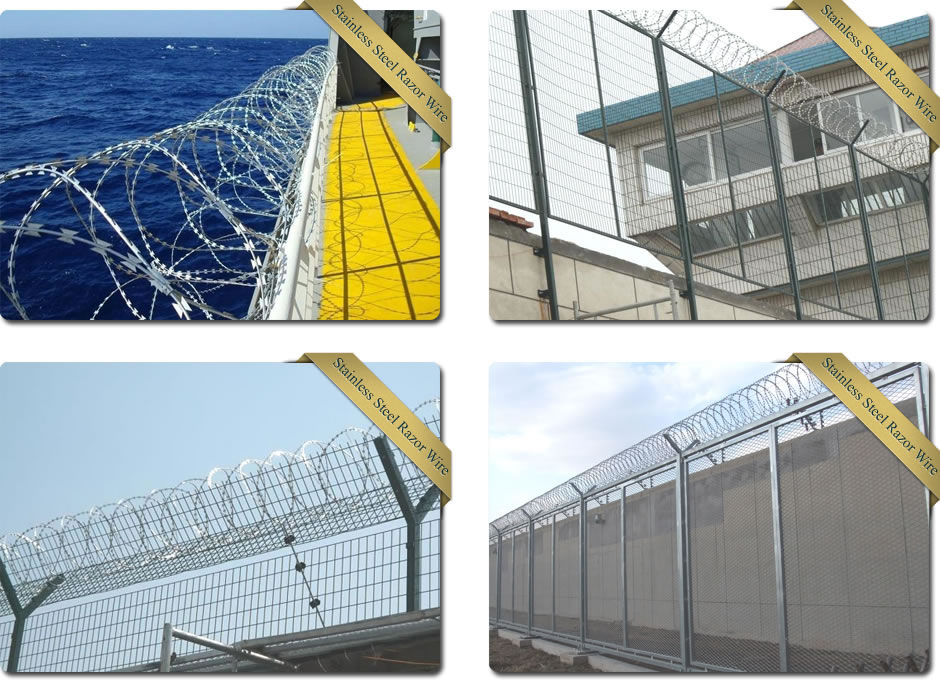

Stainless steel razor barbed wire often cooperates with chain link fence, welded fence or field fence, walls and gates. It effectively upgrades the security level and protects your property and family from threatening.
Stainless steel razor barbed wire has many advantages:
1.Never rust in all weathers.
2.Sharp blades will not become blunt.
3.Excellent resistance to alkali and acid elements.
4.No maintenance after installation.
5.Shining appearance gives warning signs to unwanted people.
6.Sharp blades.
7.Economy cost in the long term.
Stainless Steel Razor Barbed Wire Protection in the form of:

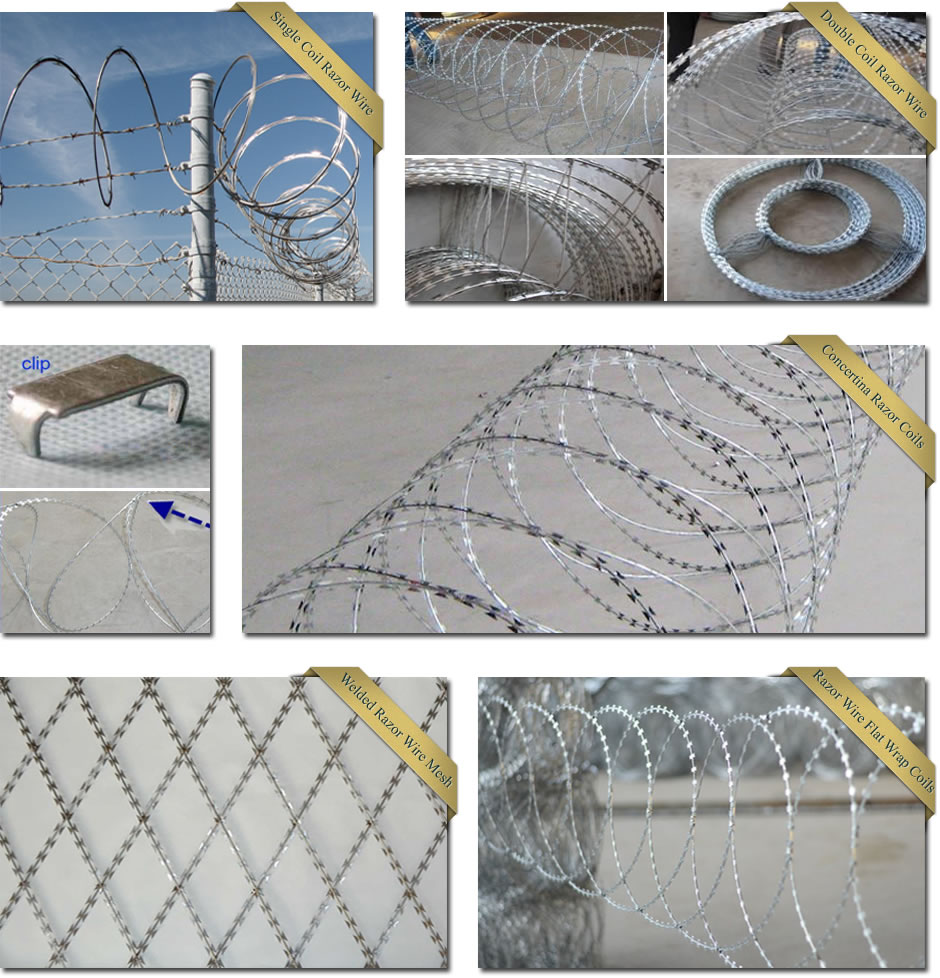

Stainless Steel Razor Barbed Wire can be divided according to the different installation methods: Razor Wire Flat Wrap Coils, Concertina Razor Coils, Single Coil Razor Barbed Wire, Double Concertina Razor Wire, Welded Razor Wire Mesh.
Razor Barbed Wire roughly divided into spiral, straight, spiral cross type three forms.
Stainless Steel Razor Barbed Wire specifications in the form:
|
Razor Blade Specification
|
|
Reference Number
|
Blade Style
|
Thickness
|
Wire Dia
|
Barb
Length
|
Barb
Width
|
Barb
spacing
|
|
BTO-10
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
13±1
|
26±1
|
|
BTO-12
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-18
|
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
BTO-28
|
|
0.5±0.05
|
2.5±0.1
|
28±1
|
15±1
|
34±1
|
|
BTO-30
|
|
0.5±0.05
|
2.5±0.1
|
30±1
|
18±1
|
34±1
|
|
CBT-60
|
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
96±2
|
|
CBT-65
|
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard styles products are shown in the tables above, special specifications are available on request.
|
Barbed Tape Wire Specification
|
|
Loop Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
|
450mm
|
56
|
8-9m(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
10-11M(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
