Barbed Wire
PVC Coated Barbed Wire

PVC Coated Barbed Wire


  • Supply Ability:100 Ton/Tons per Month as request.
  • Payment Terms:L/C,D/A,D/P,T/T,Western Union.
  • Place of Origin:Anping Hebei China (Mainland).
  • Products Specifications:single wire twist or double wire twist.
  • Material:Galvanized wire,PVC Coated Wire,Stainless steel Wire(430,304,304L,316).
  • Surface Treatment:Hot dipped galvanized and stainless steel,PVC Coated.
  • Quality Control:ISO9001.

PVC Coated Barbed Wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape. Barbed wire provides vital protection for the rest of a fence by preventing downward pressure form cattle or other heavy animals. And Barbed Wire mainly serves in protecting of grass boundary, railway, and highway also widely used in military, jail, industry, agriculture, dwelling house, plantation for fencing.

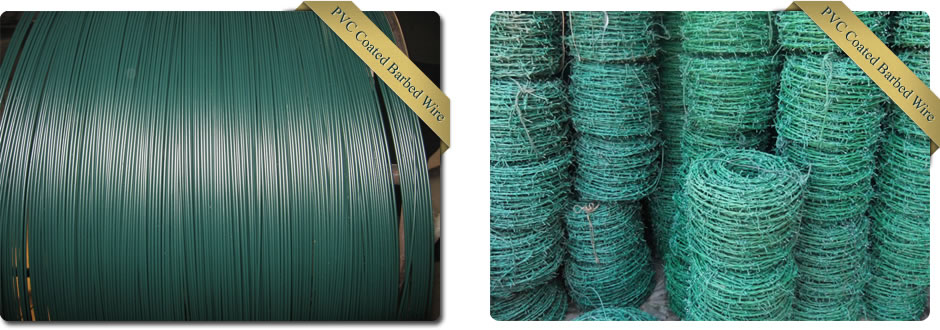

PVC Coated Barbed Wire

PVC Coated Barbed Wire Product Description:

•Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
•A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
•Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.Mm.
•Packing: In coil of 25 kilos or 50 kilos net, lined with P. V. C strips, then wrapped with P. V. C or hessian cloth

Also our factory could produce galvanized barbed wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).

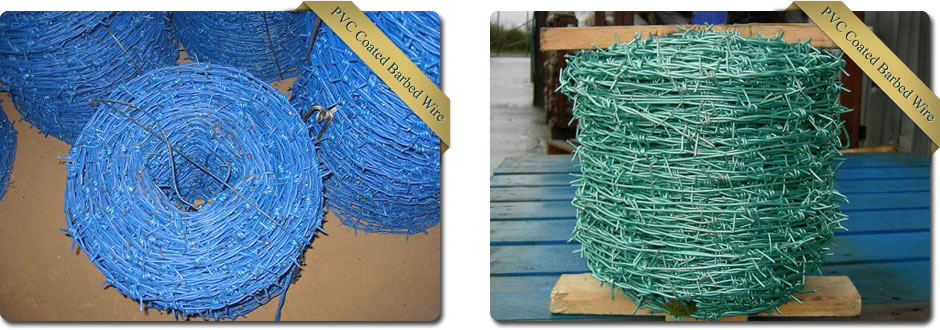

PVC Coated Barbed Wire

PVC Coated Barbed Wire Wire Materials:

 PVC coated barbed iron wire, Core of it can be galvanized iron wire or black annealed iron wire.

PVC Coated Barbed Wire Colors:

 A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.

PVC Coated Barbed Wire Packing:

 In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or Hessian cloth.

PVC Coated Barbed Wire Characteristic:

because of the high strength and higher toughness, PVC can reduce the wear between layer and layer, rope and spool during operating. With the excellent corrosion resistance, PVC wire rope is good for ocean engineering, irrigation machines and big excavators.

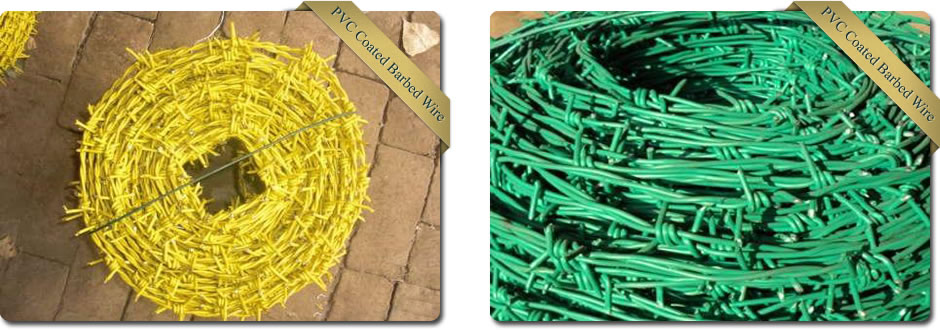

PVC Coated Barbed Wire

PVC Coated Barbed Wire Specification:

Gauge of
Strand and Barb in B.W.G.
Approximate Length per Kilo in Meter
Barbs Spacing 3"
Barbs Spacing 4"
Barbs Spacing 5"
Barbs Spacing 6"
12x12
6.0617
6.7590
7.2700
7.6376
12x14
7.3335
7.9051
8.3015
8.5741
12-1/2x12-1/2
6.9223
7.7190
8.3022
8.7221
12-1/2x14
8.1096
8.814
9.2242
9.5620
13x13
7.9808
8.899
9.5721
10.0553
13x14
8.8448
9.6899
10.2923
10.7146
13-1/2x14
9.6079
10.6134
11.4705
11.8553
14x14
10.4569
11.6590
12.5423
13.1752
14-1/2x14-1/2
11.9875
13.3671
14.3781
15.1034
15x15
13.8927
15.4942
16.6666
17.5070
15-1/2x15-1/2
15.3491
17.1144
18.4060
19.3386

HuaDong Barbed Wire Workshop:

PVC Coated Barbed Wire
