Welded Gabion Box
- Supply Ability:100 Ton/Tons per Month as request.
- Payment Terms:L/C,D/A,D/P,T/T,Western Union.
- Place of Origin:Anping Hebei China (Mainland).
- Products Specifications:2mx1mx1m，2mx 1mx0.5m，1mx1mx1m，1mx1mx0.5m，1.5m x1mx1m
- Material:Galvanized wire,PVC Coated Wire.
- Surface Treatment:
- Quality Control:ISO9001.

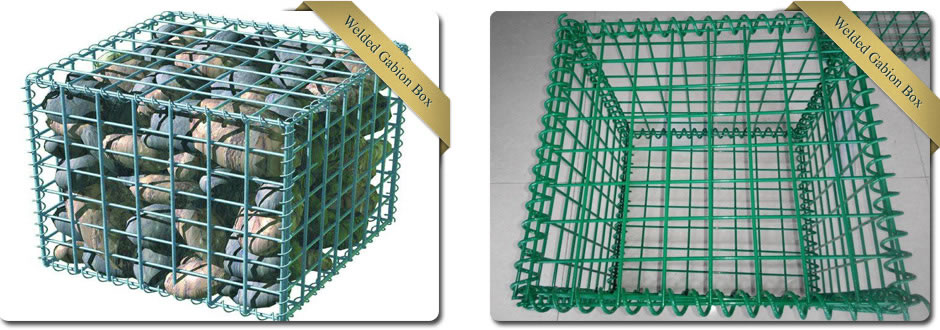

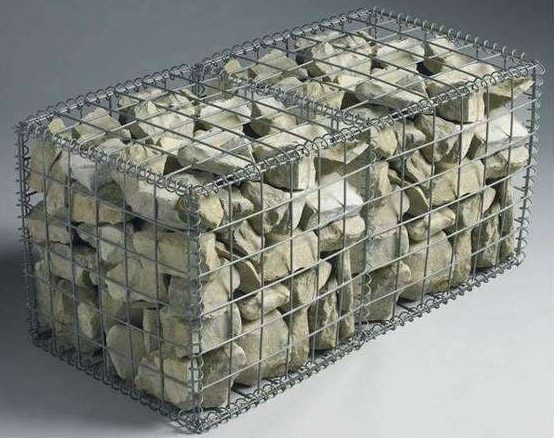

Welded Gabion Box are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.
Technical Note:
Mesh Size: Mesh openings should be square of nominal dimension of 76.2mm on the grid.
Mesh Wire: Nominal wire diameter should be 3.0mm to BS 1052.
Standard Sizes: 2mx1mx1m, 2mx 1mx0.5m, 1mx1mx1m, 1mx1mx0.5m, 1.5m x1mx1m
Surface Treatment: 95% zinc 5% aluminium coating for corrosion resistance
Assembly: Assembled with stainless steel clips connecting side panels and diaphragms to the base panel
Joining: welded gabion box should be provided with lacing wire for site assembly, which should be? of minimum wire diameter 2.2mm for final joining.

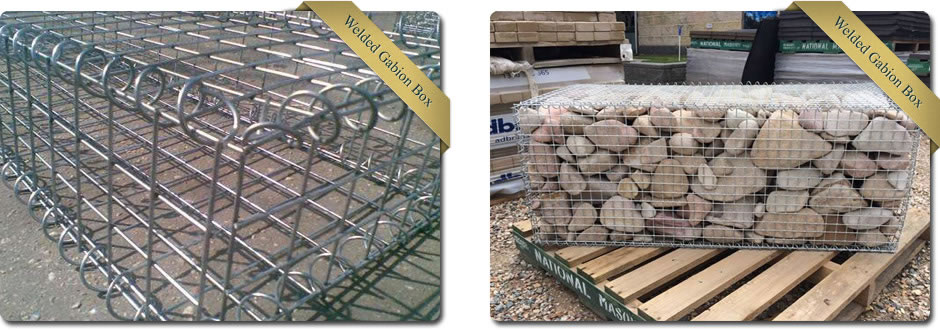

Field installation is quick and easy. In fact, installation time can be as much as 40% less than required by hex type gabions. With diaphragms and stiffeners installed,the gabion may be filled with standard loading equipment.After filling the gabion, a lid is placed on top and secured with spiral binders,lacing wire or “C” rings.
Unlike hexagonal units, HuaDong Welded Gabion hold their shape better – they don’t bulge out when filled .They are easy to handle,which means more work,less labor and highter productivity an the job.
HuaDong Welded Gabion are made by one of the nation’s leading manufacturers of welded wire mesh. Each gabion is constructed of rugged hight tensile wire which is coated with a thick, cor-rosion-resistant layer of zinc. The wire is also available with a tough,durable PVC coating. The jality materials results in a longer,gabion life. HuaDong welded wire supplied from stock in a complete Custom sizes to fit unique site con-ailable on special order.

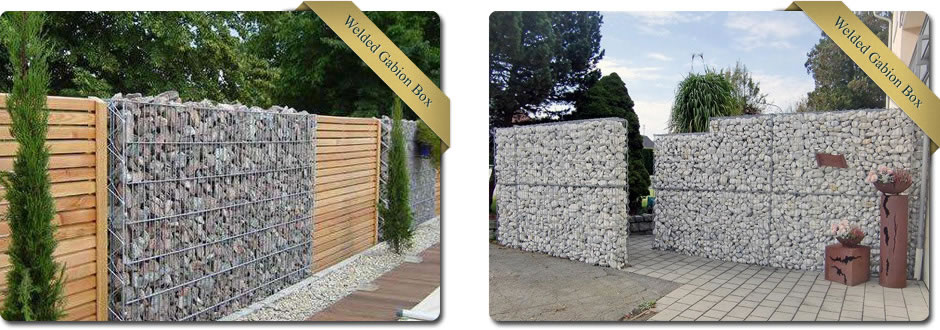

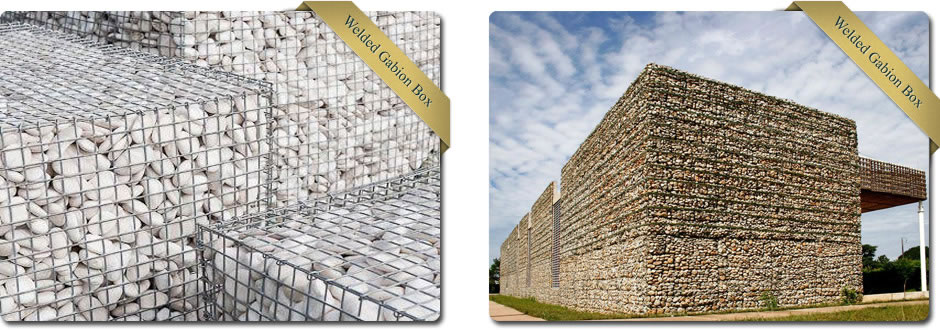

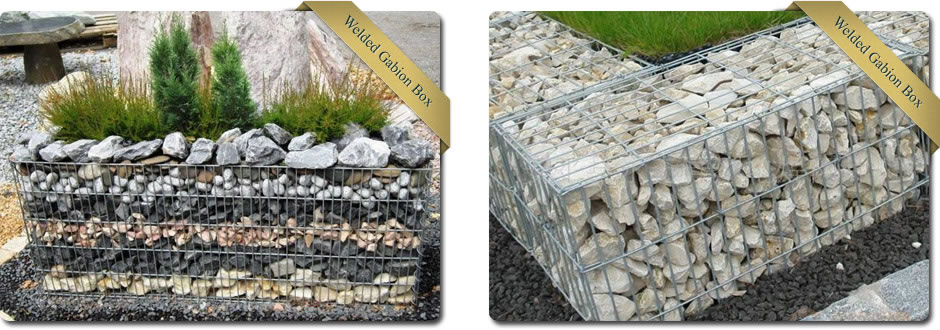

Major Applications of Welded Gabions:

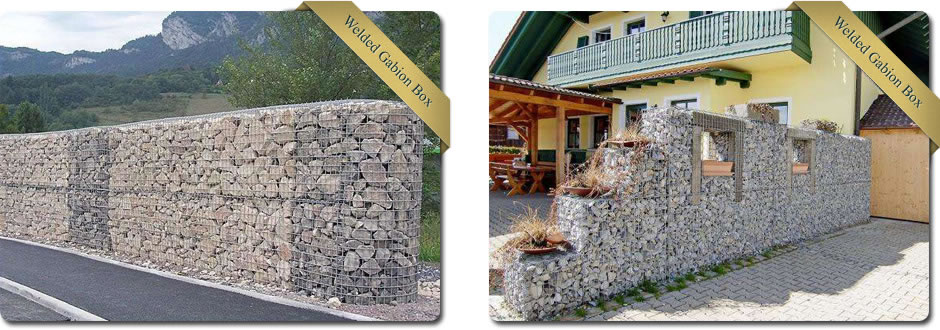

1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection
|
sizes of gabion
|
amount of diaphragm
|
Standard of gabion
|
spiralspindle
|
|
L*W*H(cm)
|
|
300*100
|
300*50
|
200*100
|
200*50
|
150*100
|
150*50
|
100*100
|
100*50
|
50*50
|
150
|
100
|
50
|
|
300 x 100 x100
|
0
|
4
|
-
|
-
|
-
|
-
|
-
|
2
|
-
|
-
|
8
|
8
|
-
|
|
2
|
4
|
-
|
-
|
-
|
-
|
-
|
4
|
-
|
-
|
8
|
16
|
4
|
|
300 x 100 x50
|
0
|
2
|
2
|
-
|
-
|
-
|
-
|
-
|
2
|
-
|
8
|
4
|
4
|
|
2
|
2
|
2
|
-
|
-
|
-
|
-
|
-
|
4
|
-
|
8
|
8
|
8
|
|
300 x 50 x100
|
0
|
2
|
2
|
-
|
-
|
-
|
-
|
-
|
2
|
-
|
8
|
4
|
4
|
|
2
|
2
|
2
|
-
|
-
|
-
|
-
|
-
|
4
|
-
|
8
|
8
|
8
|
|
300 x 50 x50
|
0
|
-
|
4
|
-
|
-
|
-
|
-
|
-
|
-
|
2
|
8
|
-
|
16
|
|
2
|
-
|
4
|
-
|
-
|
-
|
-
|
-
|
-
|
4
|
8
|
-
|
8
|
|
200 x 100 x100
|
0
|
-
|
-
|
4
|
-
|
-
|
-
|
2
|
-
|
-
|
-
|
16
|
-
|
|
1
|
-
|
-
|
4
|
-
|
-
|
-
|
3
|
-
|
-
|
-
|
20
|
-
|
|
200 x 100 x100
|
0
|
-
|
-
|
2
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
12
|
4
|
|
1
|
-
|
-
|
2
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
14
|
6
|
